SILICONE AND VITONŽ
GASKETS AND SEALS
TRICOMP Silicone Seals are Standard in FDA Approved Materials


Tricomp extruded silicone rubber gaskets and seals are ideally suited for a wide range of applications, particularly where extremes in heat, cold and other severe operating conditions are present. Tricomp silicone seals are available for temperatures ranging from -178°F to +550°F.

Tricomp standard silicone extrusions include "p" and "e" profiles (with hollow bulbs), "u" channels, steel-core clips-on seals, "D" sections as well as solid and sponge cords, squares, rectangles, ribbed sections and hollow "teardrops."

Tricomp seals, made of VitonŽ, have excellent resistance ot oils, fuels, lubricants, most mineral acids, and many aliphatic and aromatic hydrocarbons at a temperature range from 0°F to +425°F.

For a quick response with price quotations, call or fax us today about your gasketing, sealing, cushioning, edging, or insulating needs.

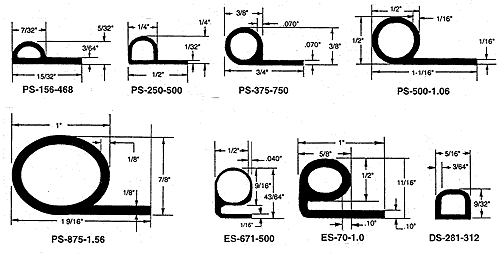

SILICONE "P", "e", "D" PROFILES
Easily mounted with metal strip, screws, rivets or with adhesive on enclosure doors, panels or frames. Available in general in general-purpose (-70°F to +400°F) or high-temperature (-70°F to +550°F) silicone rubber.


Parts shown below are standard in FDA approved ingredients, high temperature silicone.

VitonŽ is a registered trademark of DuPont Dow Elastomers.


OTHER STANDARD TRICOMP SILICONE PROFILES

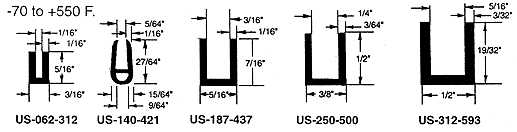

SILICONE "U" CHANNEL
Seals and protects edges from 1/16" to 5/16." -70 °F to +550°F.





SILICONE STEEL-CORE CLIP-ON SEALS
Extrusions with spring-steel clips protect edges and seal gaps between surfaces. Three configurations for different design requirements fit 1/16" to 3/16"
edge thicknesses. -40°F to +350°F.







SILICONE AND VITONŽ CLOSED
CELL SPONGE

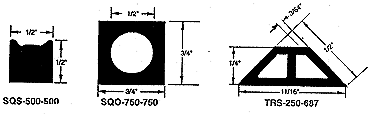

SILICONE CORDS, SQUARES, RECTANGLES, TUBING
Ideal for thermal and/or acoustic insulation. Standard size shapes are available in both solid silicone and silicone sponge.





 SOF-500-500S
Silicone

SOF-500-500V
VitonŽ
VitonŽ is a registered trademark of DuPont Dow Elastomers.



CUSTOM GASKETS/SEALS

  Tricomp will help you in designing a custom gasket or seal and will produce the new die or mold needed to give you the best answer for your application. In addition to Silicone and VitonŽ, we extrude and mold PVC, TPE, Neoprene, and EPDM.

SPLICING, CORNER MOLDINGS

Tricomp will splice extruded strips into O-rings, or form them into rectangular assemblies to your dimensions. We can also laminate pressure sensitive adhesive to strips and gasket assemblies.
